Walksnail Moonlight kit

USD 270,00

The New Walksnail Moonlight Kit Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency to give the pilots a smoother FPV experience.
It features a starlight sensor, built-in EIS and supports Gyroflow technology to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.

Disponible para reserva

SKU: WN11-4K14B Categorías: , Etiquetas: , , , , ,

Descripción

The New Walksnail Moonlight Kit Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency to give the pilots a smoother FPV experience.
It features a starlight sensor, built-in EIS and supports Gyroflow technology to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.
Don’t forget to check out the rest of our Video Transmitters and Walksnail Products!!

Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.

The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

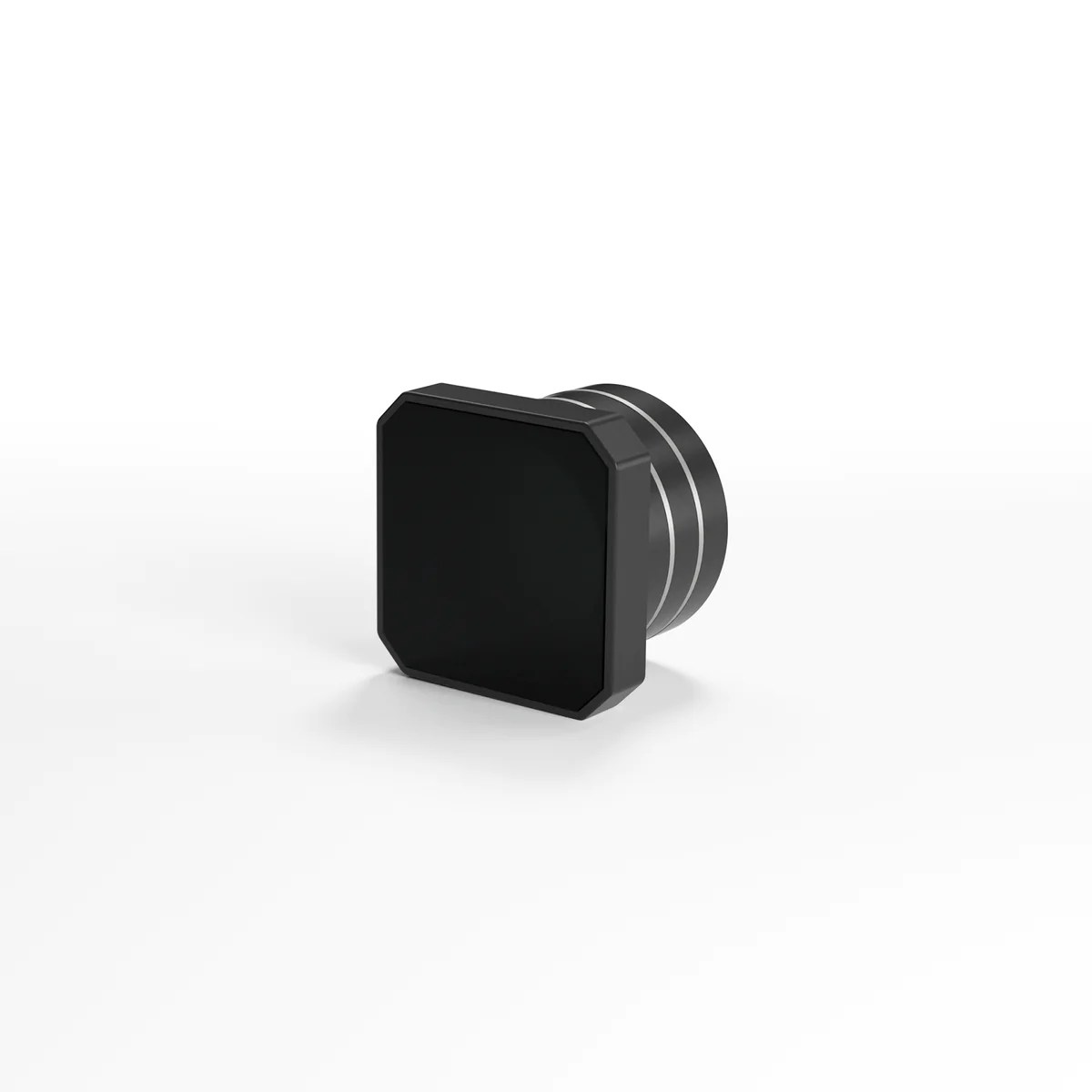

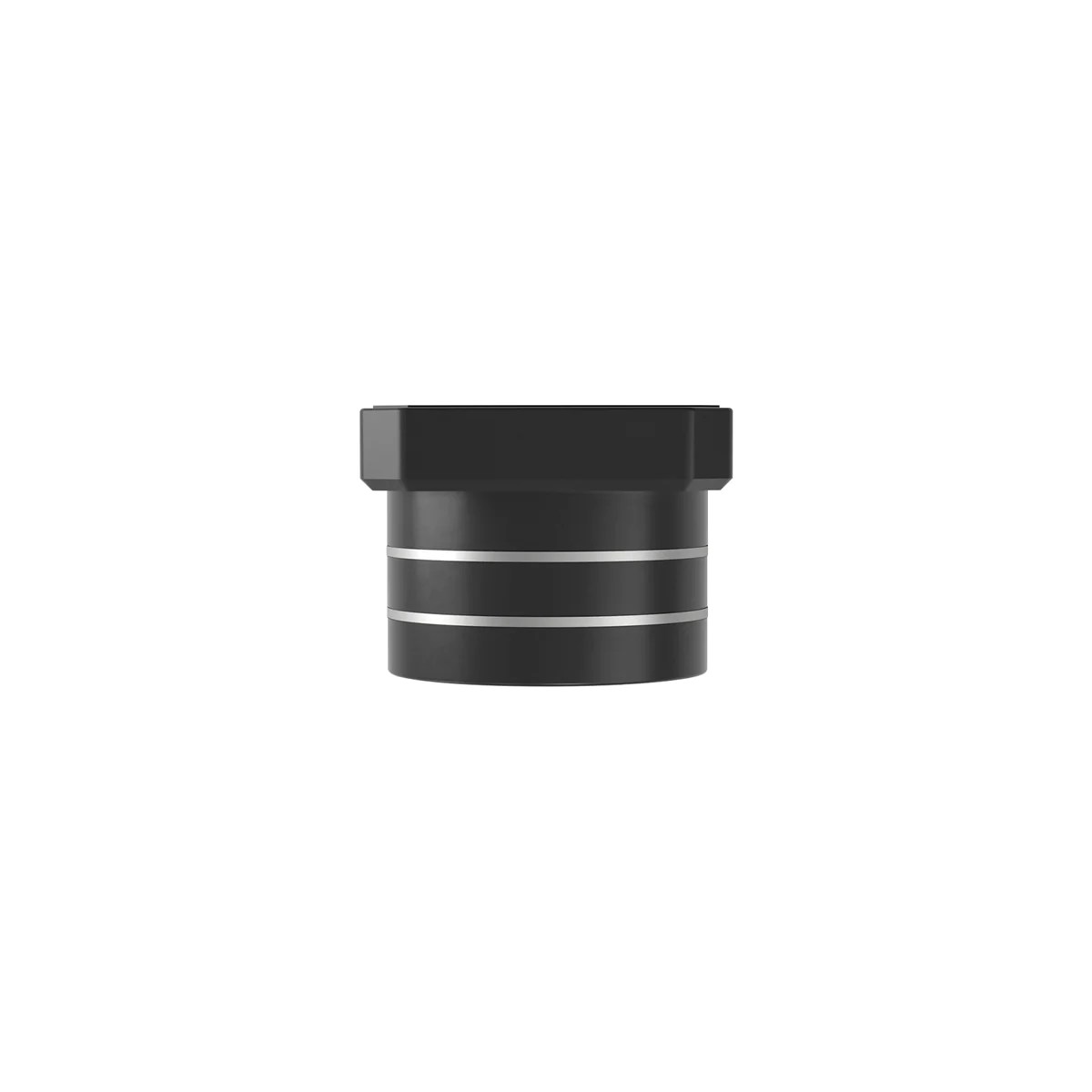

Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.

 SPECIFICATIONS:

  • Model Moonlight kit
  • Firmware name AvatarMoonlight_Sky_X.X.X
  • Communication Frequency 5.725-5.850GHz
  • Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
  • 1/O Interface JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1
  • Sensor Starlight sensor
  • FOV Max 160°
  • Aperture F2.1
  • Shutter Rolling shutter
  • ISO 100-25600
  • Recording resolution 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
  • Max Mbps 150Mbps
  • Video format MP4 (H.264)
  • 3D DNR Support
  • Gyroflow Support
  • Built-in EIS Support
  • Wide Power Input
  • 7.4V-25.2V
  • Power consumption 12V@1.4A, 8V@2.2A
  • Memory card type U3 MicroSD, Max 256G
  • Camera size 19.6mm*19mm*24mm
  • VTX size 15.3mm*34.5mm*34.5mm
  • VTX Installation hole distance 20*20mm/25*25mm (M2)
  • Weight
  • 38.5g(Antenna not included)
  • OSD Canvas mode
  • Latency Average delay 22ms
  • Antenna 2 (IPEX)

VTX ANTENNA

  • model avatar V2 antenna
  • Polarization LHCP
  • Frequency range 5600MHz-6000MHz
  • Average Gain 1.9dBi
  • VSWR <1.5
  • Input Impedance 50Ω
  • Interface IPEX-1
  • Dimension R15 X 45mm (without cable)
  • Weight 2g

PACKAGE INCLUDES:

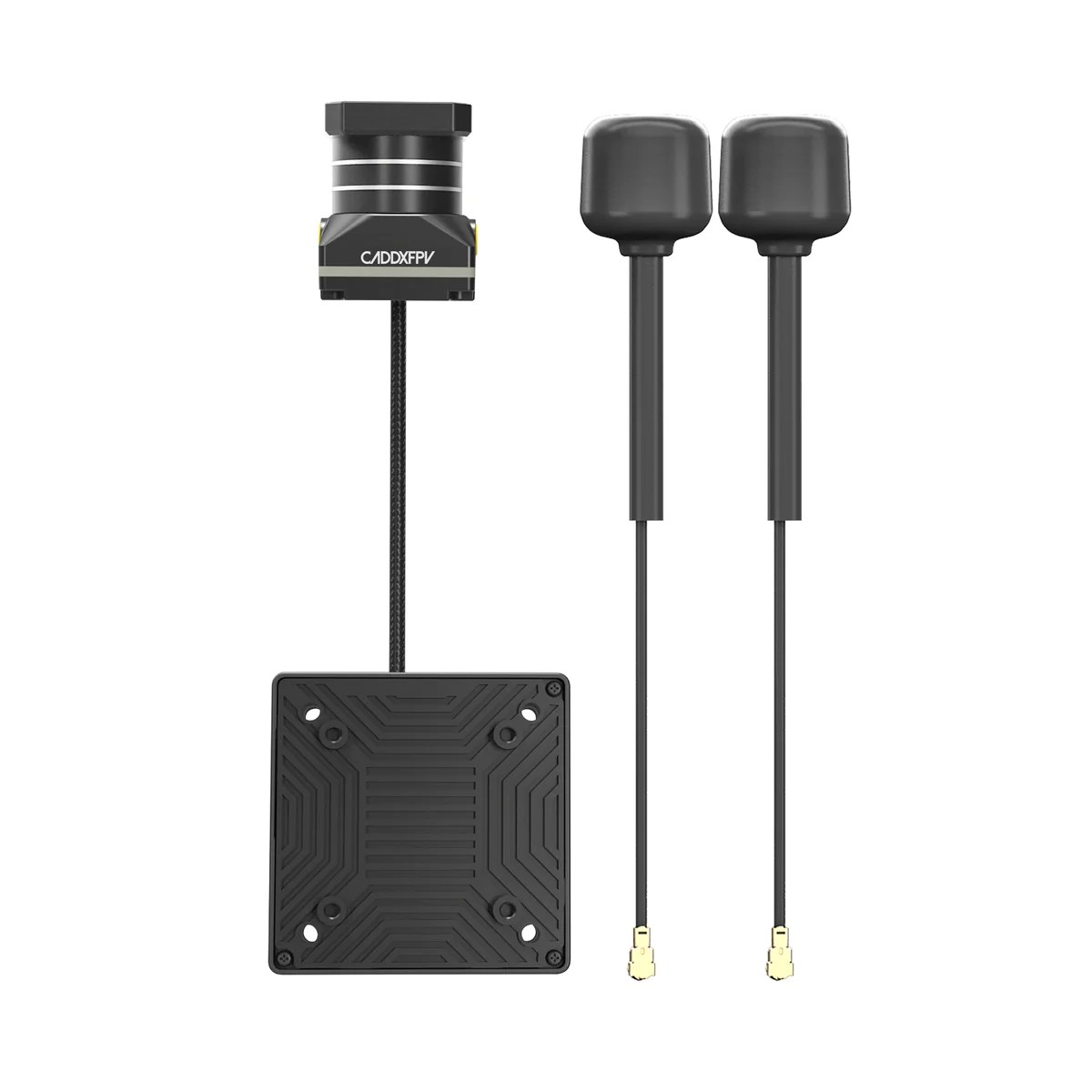

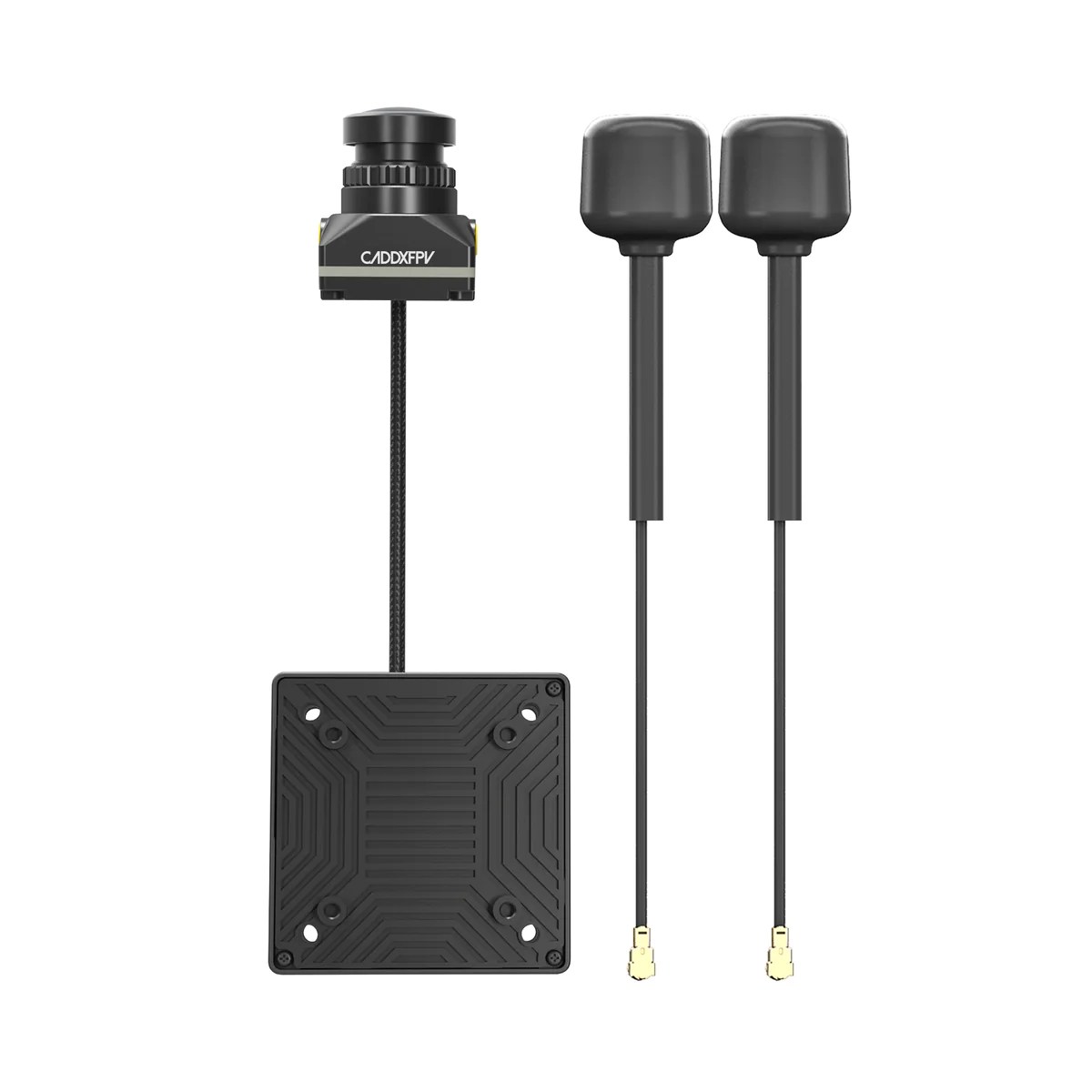

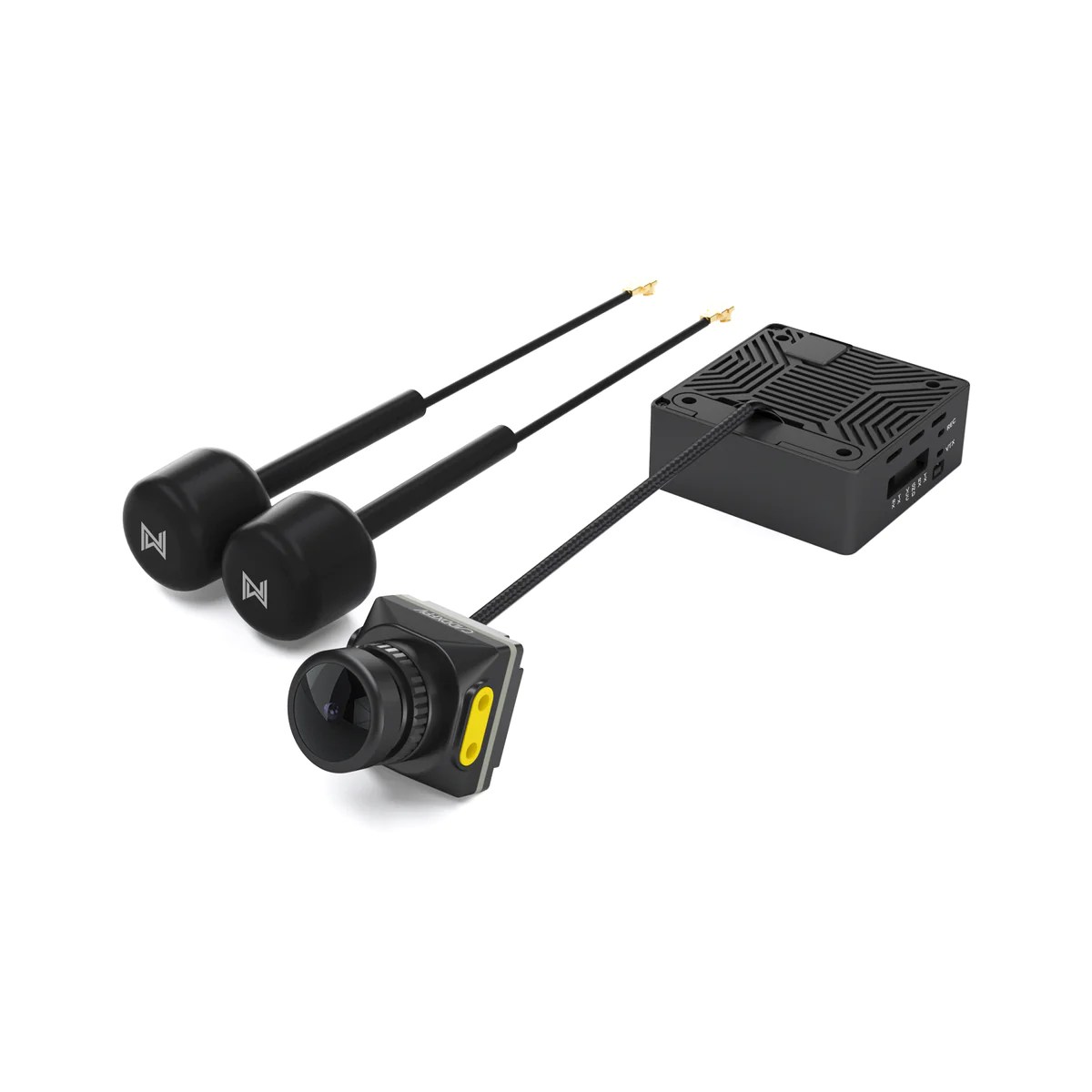

  • 1x Moonlight Kit (VTX Unit + Camera)
  • 2x Antenna
  • Mounting Hardware
  • Wire Harness
  • Manual
